PHILIPS TRANSDUCERS


S5-1


Sector Array Transducer with PureWave Crystal Technology


  • 5 to 1 MHz extended operating frequency range
  • PureWave crystal technology - increases bandwidth and efficiency for broader patient range and improved clinical performance
  • 2D, steerable PW Doppler and CW Doppler, High PRF Doppler, Color Doppler, Tissue Doppler, XRES, and Harmonic Imaging including LVO
  • Adult, pediatric, and congenital heart disease applications

S8-3



Broadband Sector Array Transducer

  • 8 to 3 MHz extended frequency range
  • Field of view: 90°
  • 2D, steerable PW Doppler and CW Doppler, High PRF Doppler, Color Doppler, Tissue Doppler, XRES, and Harmonic Imaging
  • Adult and pediatric cardiology applications, fetal echo

S12-4


Sector Array Transducer

  • 12 to 4 MHz extended frequency range
  • Field of view: 90°
  • 2D, steerable PW Doppler and CW Doppler, High PRF Doppler, Color Doppler, Tissue Doppler, XRES, and Harmonic Imaging
  • Cardiac intraoperative, Tissue Doppler, and epicardial imaging
  • Pediatric and adult cardiology applications

X3-1


Broadband xMATRIX Array Transducer

  • 3 to 1 MHz extended operating frequency range
  • 2D xMATRIX phased array with 2,400 elements
  • 2D, biplane (Live xPlane), triggered full volume, Live 3D Echo, Color Doppler with 2D, biplane and 3D, XRES, Harmonic Imaging, LVO
  • Adult and pediatric cardiology applications
  • Epicardial imaging
  • Supports reusable plastic biopsy guide (dual angle) (14-23 gauge)
  • Explora connector with exceptional broadband response and new cable technology that is extremely flexible and lightweight

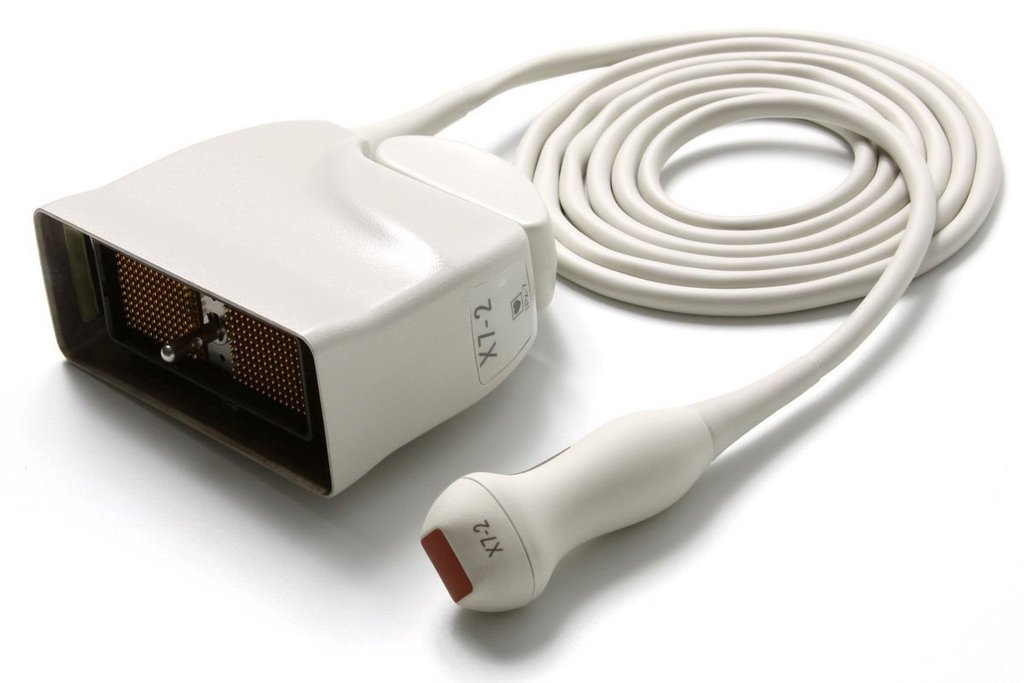

X7-2



xMATRIX Array Transducer

  • The new X7-2 transducer combines xMATRIX technology with PureWave crystal technology for remarkable imaging in small pediatric patients.
  • 2D matrix array with 2,500 elements
  • 7 to 2 MHz extended operating frequency range
  • 2D, biplane (Live xPlane), triggered full volume, Live 3D Echo (iE33) or Live Volume imaging (iU22), color Doppler and PW Doppler with 2D, biplane and 3D, XRES, and Harmonic Imaging
  • Neonatal and pediatric cardiology applications (iE33)
  • Epicardial imaging (iE33)
  • Pediatric abdomen, neonatal head, and fetal echo (iU22)

X7-2t TEE


2D and Live 3D TEE xMATRIX Array

  • iE33 Live 3D TEE Transducer On the iE33 xMATRIX system, the X7-2t transducer combines xMATRIX array and PureWave crystal technologies in a fully functional TEE probe for remarkable Live 3D Echo performance during transesophageal exams.
  • 2D and 3D matrix array
  • 7 to 2 MHz extended operating frequency range
  • 2D, color flow, PW Doppler, CW Doppler, M-mode, Live xPlane imaging, Live 3D Echo, Live 3D zoom, advanced XRES, triggered full volume, triggered 3D color
  • Harmonic imaging
  • Dynamic elevational focusing
  • Electrocautery suppression
  • Electronic rotatable array from 0 to 180 degrees
  • TEE applications for patients >30 kg/66 lb

CX50 and Sparq TEE Transducer
On the CX50 and Sparq systems, the X7-2t transducer combines xMATRIX and PureWave crystal technologies in a TEE probe for remarkable image quality in 2D transesophageal exams.
  • 2D matrix array
  • 7 to 2 MHz extended operating frequency range
  • 2D, color flow, PW Doppler, CW Doppler, M-mode, advanced XRES
  • Harmonic imaging
  • Dynamic elevational focusing
  • Electrocautery suppression
  • Electronic rotatable array from 0 to 180 degrees
  • TEE applications for patients >30 kg/66 lb

An optional transducer adapter is available for purchase that enables the
CX50 and Sparq X7-2t transducer to be used in both 2D and 3D modes on an iE33 system.



S7-2t


Omni Sector Array

  • Transesophageal phased array
  • 7 to 2 MHz extended operating frequency range
  • 180 degrees electronic rotation
  • Field of view: 90°
  • Electrocautery suppression
  • 2D, Steerable PW Doppler, CW Doppler, High PRF Doppler, Color Doppler, Tissue Doppler, XRES, Harmonic Imaging, LVO
  • Adult TEE applications
