ATL TRANSDUCERS

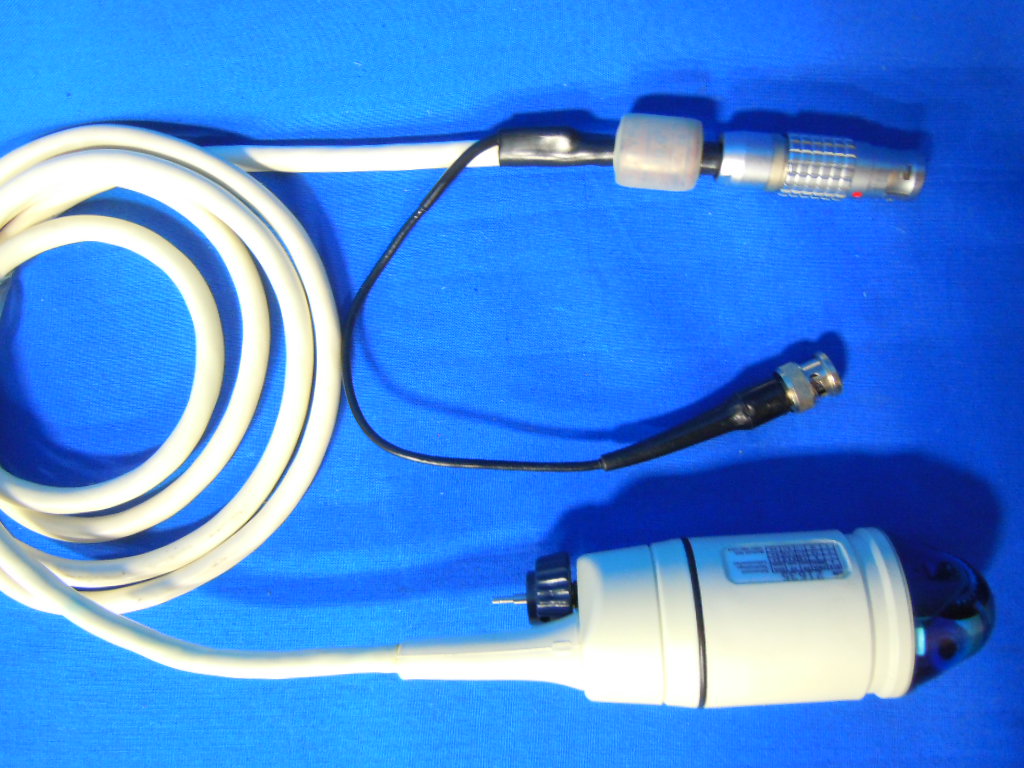

ATL 10PV



  • The ATL 10PV is a triple-load imaging ultrasound transducer probe.
  • The ATL 10PV is used for vascular applications and has a frequency range of 5.0/7.5/10.0 Mhz.
  • This transducer is compatible with the ATL Ultramark 4, 5, 8 and 9 ultrasound systems.



ATL 10PV Features



  • Multi-frequency probe
  • Triple-load imaging
  • Mechanical sector transducer


ATL 2.25 PW




  • The ATL 2.25 PW is a non imaging PW trans-cranial ultrasound transducer probe.
  • The ATL 2.25 has a frequency range of 2.0 Mhz and is compatible with the ATL HDI ultrasound system.


ATL 2.25 PW Features

  • Trans-cranial doppler
  • Frequency: 2.0Mhz
  • Non-imaging probe


ATL 9 3.5WA




  • The ATL 9 3.5WA is a non HDI ultrasound transducer probe.
  • The ATL 9 3.5WA has a frequency of 3.5MHz and is 25mm.
  • This transducer probe is in used condition and is compatible with the UM-9 ultrasound systems.


ATL 9 3.5WA Features

  • 25mm
  • HDI ultrasound probe
  • Frequency 3.5 MHz

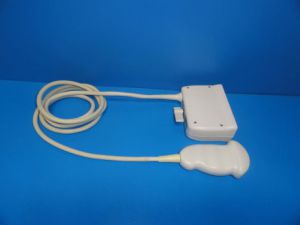

ATL C5




  • The ATL C5 is a curved array ultrasound transducer probe.
  • The ATL C5 is a 40mm transducer that has a frequency range of 5.0 Mhz.
  • This probe is compatible with the UM-4 and UM-9 ultrasound systems


ATL C5 Features

  • Curved linear array transducer
  • Frequency: 5.0 Mhz

  • ATL C9-5ICT



  • The ATL C9-5ICT is a curved array ultrasound transducer probe that is used with endocavity clinical applications.
  • The ATL C9-5ICT has a frequency range of 9-5MHz

ATL C9-5ICT Features


  • Curved array probe
  • Frequency range: 5.0 to 9.0 MHz
  • Used with endovaginal and endorectal applications


  • ATL CLA4.0



  • The ATL CLA4.0 is a curved linear array ultrasound transducer probe for the UM 400C.
  • The ATL CLA4.0 has a frequency range of 2.8 to 5.0 MHz

  • ATL CLA4.0 Features

  • Curved linear probe
  • Compatible with UM-400C
  • Frequency: 2.8 - 5.0 MHz


  • ATL D2.0 CW


  • The ATL D2.0 CW is an ultrasound transducer probe that is used with adult and pediatric cardiac applications.
  • The ATL D2.0 CW is compatible with the HDI 3000, 3500, 4000 and 5000 series ultrasound systems.

  • ATL D2.0 CW Features

  • Doppler transducer
  • Cardiac use
  • Frequency: 2.0 MHz


  •                                                ATL L12-5


  • The ATL L12-5 linear ultrasound transducer is compatible with HDI 1000/1500/3000/3500/4000/5000 ultrasound systems.
  • The L12-5 can be employed for small parts and vascular applications.

ATL L12-5 Features

  • 12.0-5.0 MHz
  • Linear Array
  • 192 elements
  • 38mm field of view

                Monday 29 May 2017

                SONOSCAPE TRANSDUCERS



                1.SonoScape C351




                • SonoScape C351 probe is a curved array transducer that has an operating frequency of 2 to 6 MHz.
                • It is used for OB-GYN and abdominal applications and is compatible with the SonoScape A6 ultrasound machine.

                SonoScape C351 Features

                • Curved array probe
                • 2 - 6 MHz

                Applications



                2.SonoScape C612


                • SonoScape C612 probe has an operating frequency range of 4 to 9 MHz and is compatible with the SonoScape A6 ultrasound machine.
                • This micro convex transducer is used for veterinary, abdominal, and pediatric applications.

                SonoScape C612 Features

                • Micro convex probe
                • 4 - 9 MHz

                Applications

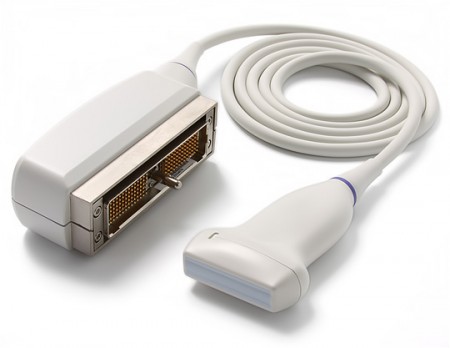

                3.SonoScape L745

                • SonoScape L745 probe is compatible with the SonoScape A6 ultrasound machine.
                • This linear probe operates at a frequency range of 5 to 10 MHz is used for vascular, small parts, orthopedic and MSK applications.

                • SonoScape L745 Features

                • Linear probe
                • 5 - 11 MHz

                  • 4.Sonoscape 5V1


                • The Sonoscape 5V1 is a micro curved array ultrasound transducer probe used with endocavity applications.

                Sonoscape 5V1 Features

                • Micro curved array probe
                • Transvaginal use
                • Frequency: 3.0 – 7.0 Mhz
                • Compatible with: SSI-600/800

                • 5.SonoScape C312



                • SonoScape C312 probe is compatible with the SonoScape A6 and is used for pediatric, abdominal, and cardiac applications.
                • This micro convex probe operates at a frequency range of 2 to 5 MHz and has a footprint of 15 mm.

                • SonoScape C312 Features

                • Micro convex probe
                • 2 - 5 MHz

                  Applications



                    • 6.Sonoscape C542



                  • The Sonoscape C542 is a curved array ultrasound transducer probe that is used with pediatric applications.
                  • The Sonoscape C542 has a frequency range of 7-3MHz.

                  Sonoscape C542 Features

                  • Curved array probe
                  • Pediatric use
                  • Frequency: 3.0 – 7.0 MHz
                  • Compatible with: SSI-1000/5000/600


                    • 7.SonoScape EC2



                  • SonoScape EC2 probe is a microconvex transducer compatible with the SonoScape A6 ultrasound machine.
                  • This is used for OB-GYN applications, has a footprint of 10 mm and has an operating frequency range of 4 to 9 MHz.

                  • SonoScape EC2 Features

                  • Microconvex endocavity array probe
                  • 4 - 9 MHz

                      SONOSCAPE TRANSDUCERS



                      1.Sonoscape 10L1




                      The Sonoscape 10L1 is a linear array ultrasound transducer probe. The Sonoscape 10L1 has a frequency range of 5 to 12 MHz

                      Sonoscape 10L1 Features

                      • Linear array probe
                      • Frequency: 5.0 to 12.0 MHz
                      • Compatible with: SSI-1000/5000/6000

                      • 2.Sonoscape 6V1



                      The Sonoscape 6V1 micro-curved ultrasound transducer is compatible with Sonoscape SSI-5000, SSI-4000, SSI-1000, and SSI-2000BW ultrasound systems.
                      The 6V1 probe can be utilized for endocavitary applications.


                      Sonoscape 6V1 Features

                      • 8.0-4.0 MHz
                      • Micro-Curved Array

                        3.Sonoscape C344


                      The Sonoscape C344 curved ultrasound transducer is compatible with Sonoscape SSI-6000, SSI-5000, SSI-4000, SSI-1000, and SSI-2000BW ultrasound systems.
                      The C344 probe can be utilized for abdominal applications.

                      Sonoscape C344 Features

                      • 2.0-5.0 MHz
                      • Broadband Curved Array

                        4.SonoScape C543

                      The used SonoScape C543 probe has an operating frequency of 3 to 8 MHz and is used for abdominal and OB-GYN applications.
                      This curved probe is compatible with the SonoScape A6 ultrasound machine.

                      SonoScape C543 Features

                      • Curved probe
                      • 3 - 8 MHz
                      • 5.Sonoscape L741





                      The Sonoscape L741 linear ultrasound transducer is compatible with Sonoscape SSI-6000, SSI-5000, SSI-4000, SSI-1000, and SSI-2000BW ultrasound systems.

                      Sonoscape L741 Features
                      • 10.0-5.0 MHz
                      • Broadband Linear Array
                      • 46mm aperture
                      • 6.SonoScape 10L2

                      • The used SonoScape 10L2 probe operates at a frequency range of 6 to 13 MHz and is used for vascular, MSK, superficial, breast, and small parts applications.
                      • This linear probe is compatible with the SonoScape A6 ultrasound machine.
                      • SonoScape 10L2 Features

                      Linear probe
                      6 - 13 Mhz

                        7.SonoScape 6V4


                        The used SonoScape 6V4 probe is used for OB-GYN applications and is compatible with the SonoScape A6 ultrasound machine.

                        SonoScape 6V4 Features

                        Micro-curved probe
                        4 - 9 MHz

                          This micro-curved transvaginal probe has an operating frequency range of 4 to 9 MHz.

                          NEEDLE GUIDES FOR ULTRASOUND TRANSDUCER



                          General Purpose Needle Guides are commonly used in procedures for
                          • Small Parts
                          • Tissue Biopsies
                          • Fluid Aspirations
                          • Kidney/Liver Biopsies and Vascular Access

                          1.Reusable Endocavity Needle Guide


                          • For use with Siemens EV10-5 & EC10-5w ultrasound transducer
                          • This easy-to-use reusable endocavity guide attaches to the transducer using a lowprofile fold-over clasp providing a stable fit to the transducer while ensuring proper positioning throughout the duration of the puncture procedure. The single-piece stainless steel system is recommended for tissue biopsy, fluid aspiration and treatment procedures.

                          Features & Benefits

                          • On-screen guidelines ensure an accurate needle path offering physicians real-time visualization during instrument advancement to target.
                          • Reduces technique variability providing a shorter learning curve and reduced procedure time.
                          • Needle guide does not compromise cover integrity during probe set-up and use.

                          2.Disposable Bi-Plane Endocavity Needle Guide



                          • For use with Shimadzu UB10R-065U transducer
                          • This disposable needle guide's unique sliding design provides functionality for both biopsy and endocavity bi-plane scanning. The easy-to-use guide simply slides forward for use in biopsy procedures and retracts for transverse bi-plane scanning.

                          Features & Benefits

                          • Accurate needle path with on-screen guidelines offers physician real-time visualization ensuring patient safety.
                          • Contoured design for patient comfort.
                          • Reduces technique variability providing a shorter learning curve and reduced procedure time.
                          • Single-use design reduces risk of cross-contamination and increased productivity with ease and safety.

                          3.Disposable Endocavity Needle Guide



                          • For use with Acoustic Imaging 6.5EV CLA, 6.5EF, 7.5/6.5 Bi-Plane, BK Medical 8554, GE Healthcare ECLA7.0MI and Philips (Agilent Technologies) E6514 and E7511 ultrasound transducers

                          Features & Benefits

                          • On-screen guidelines ensure an accurate needle path, offering physicians real-time visualization during instrument advancement to target.
                          • Endocavity guide features a large funnel for instrument insertion, accepting a range of sizes including 16-18GA and smaller.
                          • Single-use design reduces the risks associated with cross-contamination, improving safety for patient and clinicians.


                          4.Disposable Endocavity Needle Guide


                          For use with Esaote EC1123, SE3123 & SE3133 and Siemens EC1123 ultrasound transducers

                          Features & Benefits

                          • Accurate needle path with on-screen guidelines offers physicians real-time visualization ensuring patient safety throughout
                          • the procedure.
                          • Reduces technique variability providing a shorter learning curve and reduced procedure time.
                          • Needle guide consists of single-piece system, allowing ease of use and efficient removal from probe while providing easy cleanup between procedures.


                          5.Disposable Endocavity Needle Guide

                          For use with International Biomedical E717 6.5MHz, Mindray EV6.5MHz/R10, 6CV1, 6CV1s, V10-4, Samsung Medison EC4-9ES, EC4-9IS, ER4-9ES, Siemens 6.5EC10, SuperSonic SE12-3, Terason 8EC4(V) ultrasound transducers

                          Features & Benefits

                          • Accurate needle path with on-screen guidelines offers physician real-time visualization ensuring patient safety.
                          • Reduces technique variability providing a shorter learning curve and reduced procedure time.
                          • Single-use design reduces risk of cross-contamination and increased productivity with ease and safety.

                          Sunday 28 May 2017

                          CARDIAC PHASED ARRAY PROBE IMAGE DEGRADATION






                          • Crystals are grouped closely together.
                          • Sound waves originates from a single point and fan outward,creating a sector-type Image.
                          • Smaller and flatter footprint them the curvilinear probe.
                          • Probe has fequency between 2-8MHz.
                          • Currently used for cardiac Imaging,Imaging between ribs and small spaces.


                          The issue is almost certainly caused by a significant knock to the head of the probe as can be seen in the image below.

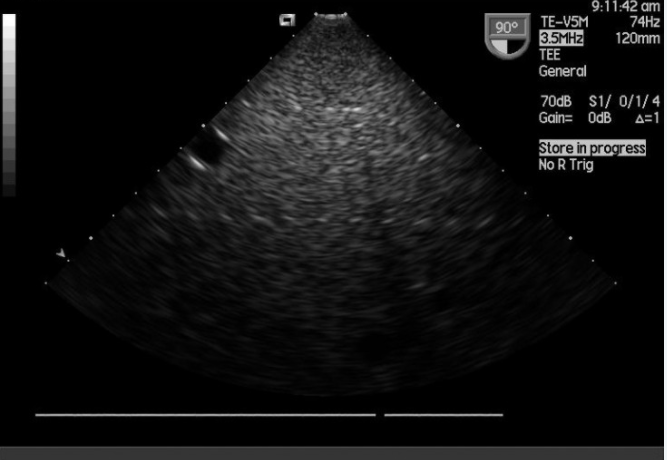

                          Now if we compare a good ultrasound image from the same phantom on the same ultrasound system. Firstly the good image, you can see how clear the phantom dots throughout the image are:



                          Now comparing with an image taken from the faulty probe:



                          With such gradual deterioration, it is sometimes difficult to recognize the problem as it just gets more and more difficult to scan patients.

                          WHEN WE NEED TO REPAIR THE PROBE ???? Many of the probe damages are repairable at initial state. But in many cases the Practitio...
