PHILIPS TRANSDUCERS


BP10-5ec


Broadband Biplane Curved Array Transducer



  • 10 to 5 MHz extended frequency range
  • Field of view: 126°
  • Biplane intersecting sagittal and transverse sectors, 8 mm radius of curvature
  • Steerable pulsed wave and color Doppler, Color Power Angio, harmonic, Freehand 3D, Panoramic, SonoCT, and XRES imaging
  • Endorectal and endovaginal applications for urology
  • Biopsy kit available


Volume Curved Array

  • 8 to 4 MHz extended operating frequency range
  • Field of view: 85 degrees
  • Steerable pulsed Doppler, High-PRF Doppler, color Doppler, Color Power Angio, SonoCT, XRES, Panoramic, harmonic, and STIC imaging
  • Supports high resolution 2D imaging
  • Supports high resolution, quantitative, single sweep 3D volume acquisition
  • Supports 4D imaging up to 30 volumes per second
  • Supports 3D color Doppler
  • General purpose small adult and pediatric abdominal, obstetrical, and gynecological applications
  • Supports biopsy guide capabilities


3D8-4


Broadband Curved Array Transducer



  • 8 to 4 MHz extended frequency range
  • 68° field-of-view
  • Supports: high resolution 2D imaging
  • Supports high resolution, quantitative, single-sweep 3D volume aquisition
  • Supports 4D imaging up to 30 volumes per second
  • Supports 3D fetal echo STIC
  • Supports 3D color Doppler
  • Steerable pulsed Doppler, high-PRF Doppler, color Doppler, and Color Power Angio, SonoCT, XRES, Panoramic and Harmonic Imaging
  • General purpose small adult and pediatric abdominal, obstetrical, and gynecological applications
  • Supports reusable plastic bracket with disposable biopsy guides (dual angle, 14-23 gauge)
  • Explora connector with new cable technology that is extremely flexible and lightweight


V9-4v


Volume Curved Array Transducer


  • 9 to 4 MHz extended operating frequency range
  • 150° field of view
  • 2D, 3D, and 4D imaging including color Doppler, STIC, PW Doppler, M-mode and CPA
  • Biopsy kit available

V7-3


Volume Curved Array


  • 7 to 3 MHz extended operating frequency range
  • 84° field of view
  • Supports 2D, 3D, and 4D imaging including Color Flow, PW Doppler, M-mode and CPA
  • Biopsy kit available

S12


Sector Array

  • 12 to 5 MHz extended operating frequency range
  • Provides high-resolution imaging for pediatric echo and neonatal cephalic applications
  • Supports 2D, color, PW/CW Doppler, and Color Power Angio imaging

S8


Sector Array Transducer

  • 8 to 3 MHz extended operating frequency range
  • High-resolution imaging for pediatric and ob/gyn applications
  • Supports 2D, color, PW/CW Doppler, and Color Power Angio imaging

15-6L


Compact Linear Array

  • 15 to 6 MHz extended operating frequency range
  • Phased linear array with 128 elements
  • 8° of trapezoidal imaging
  • Provides high-resolution imaging for epicardial, intraoperative, and vascular applications
  • Supports 2D, color, PW Doppler, and Color Power Angio imaging

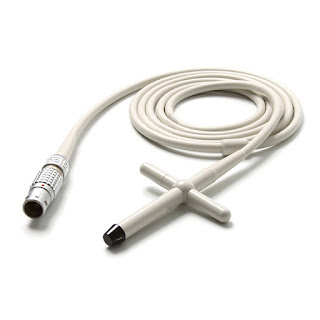

D5009v


Cardiac/vascular non-imaging transducer

  • 5 MHz, 9 mm diameter pencil transducer
  • Non-imaging PW/CW Doppler for cardiac and vascular application

D1914C


Cardiac Non-imaging Transducer


  • 1.9 MHz pencil transducer
  • Non-imaging CW Doppler for cardiac applications

S6-2mpt


Sector Array

  • 6 to 2 MHz extended frequency range
  • 180° mechanical rotation, 90° field-of-view
  • Supports 2D, Tissue Harmonic Imaging, color, PW/CW Doppler and Color Power Angio imaging
  • High-frequency transesopageal imaging with true electrocautery suppression and advanced ergonomics
  • Not available for sale in all geographies
